| 主機 | 操作系統 | IP地址 | 所需軟件 |
|---|---|---|---|
| Nginx Server | CentOS7 | 192.168.109.7 | nginx-1.12.0.tar.gz |
| Tomcat Server1 | CentOS7 | 192.168.109.22 | apache-tomcat-9.0.16.tar.gz、jdk-8u201-linux-x64.rpm |
| Tomcat Server2 | CentOS7 | 192.168.109.23 | apache-tomcat-9.0.16.tar.gz、jdk-8u201-linux-x64.rpm |

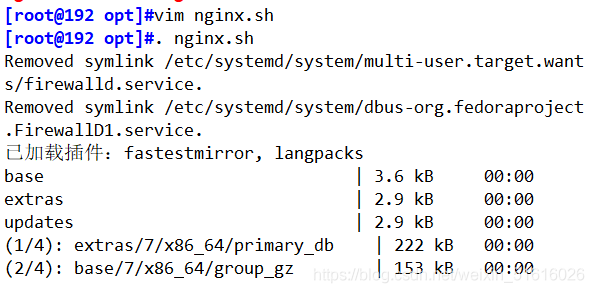

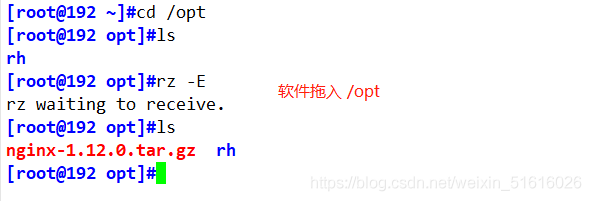

#!/bin/bash #腳本說明：編譯安裝nginx服務 #注意：使用前請將nginx-1.12.0.tar.gz放入/opt目錄下 #關閉防火墻 systemctl stop firewalld systemctl disable firewalld setenforce 0 #安裝所需開發包和編譯環境、編譯器 yum -y install pcre-devel zlib-devel openssl-devel gcc gcc-c++ make #創建程序用戶，便于準確控制訪問 useradd -M -s /sbin/nologin nginx #解壓安裝包 cd /opt tar zxvf nginx-1.12.0.tar.gz -C /opt/ #編譯安裝nginx；指定安裝路徑、指定用戶名、組名、啟用模塊以支持統計狀態 cd /opt/nginx-1.12.0/ ./configure --prefix=/usr/local/nginx --user=nginx --group=nginx --with-http_stub_status_module --with-file-aio --with-http_gzip_static_module --with-http_flv_module --with-http_ssl_module make && make install #軟鏈接便于系統識別nginx操作命令 ln -s /usr/local/nginx/sbin/nginx /usr/local/sbin/ #添加nginx系統服務 echo '[Unit] Description=nginx After=network.target [Service] Type=forking PIDFile=/usr/local/nginx/logs/nginx.pid ExecStart=/usr/local/nginx/sbin/nginx ExecrReload=/bin/kill -s HUP $MAINPID ExecrStop=/bin/kill -s QUIT $MAINPID PrivateTmp=true [Install] WantedBy=multi-user.target' > /lib/systemd/system/nginx.service #賦權及開啟服務、開啟開機自啟 chmod 754 /lib/systemd/system/nginx.service systemctl restart nginx.service systemctl enable nginx.service

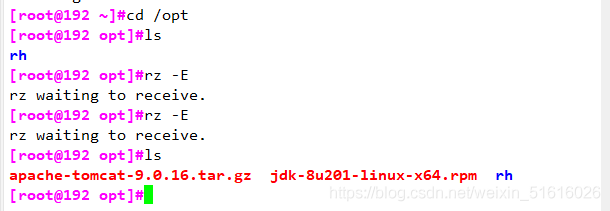

2、部署兩臺 Tomcat 應用服務器

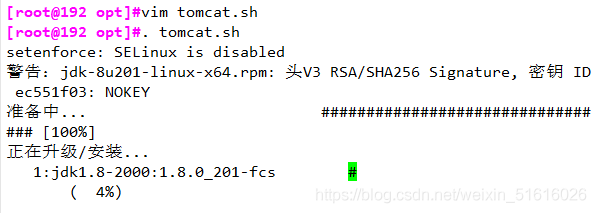

#!/bin/bash #安裝Tomcat服務 #關閉防火墻 systemctl stop firewalld systemctl disable firewalld setenforce 0 #安裝JDK cd /opt rpm -ivh jdk-8u201-linux-x64.rpm #設置JDK環境變量 echo 'export JAVA_HOME=/usr/java/jdk1.8.0_201-amd64 export CLASSPATH=.:$JAVA_HOME/lib/tools.jar:$JAVA_HOME/lib/dt.jar export PATH=$JAVA_HOME/bin:$PATH' > /etc/profile.d/java.sh source /etc/profile #安裝并啟動Tomcat cd /opt tar zxvf apache-tomcat-9.0.16.tar.gz mv apache-tomcat-9.0.16 /usr/local/tomcat /usr/local/tomcat/bin/startup.sh
3、動靜分離配置
請看tomcat
1）Tomcat1 server 配置
mkdir /usr/local/tomcat/webapps/test
#配置動態頁面

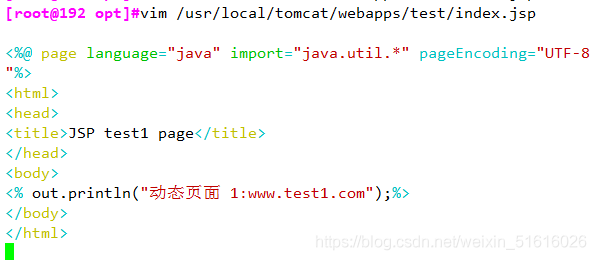

vim /usr/local/tomcat/webapps/test/index.jsp
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<html>
<head>
<title>JSP test1 page</title>
</head>
<body>
<% out.println("動態頁面 1:www.test1.com");%>
</body>
</html>

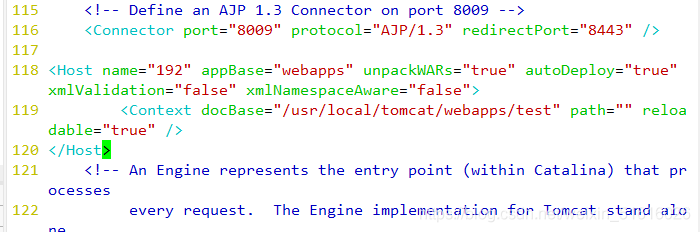

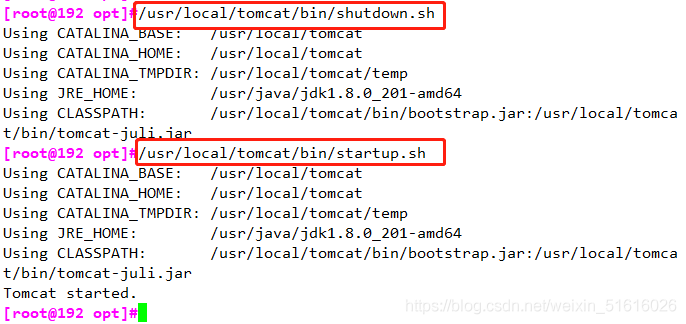

#修改配置文件 vim /usr/local/tomcat/conf/server.xml <Host name="192" appBase="webapps" unpackWARs="true" autoDeploy="true" xmlValidation="false" xmlNamespaceAware="false"> <Context docBase="/usr/local/tomcat/webapps/test" path="" reloadable="true" /> </Host> /usr/local/tomcat/bin/shutdown.sh /usr/local/tomcat/bin/startup.sh
2）Tomcat2 server 配置
mkdir /usr/local/tomcat/webapps/test

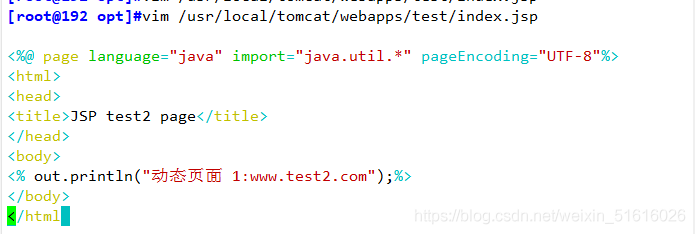

vim /usr/local/tomcat/webapps/test/index.jsp
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<html>
<head>
<title>JSP test2 page</title>
</head>
<body>
<% out.println("動態頁面 1:www.test2.com");%>
</body>
</html>
#修改配置文件 vim /usr/local/tomcat/conf/server.xml <Host name="192" appBase="webapps" unpackWARs="true" autoDeploy="true" xmlValidation="false" xmlNamespaceAware="false"> <Context docBase="/usr/local/tomcat/webapps/test" path="" reloadable="true" /> </Host> /usr/local/tomcat/bin/shutdown.sh /usr/local/tomcat/bin/startup.sh
3）Nginx server 配置
#準備靜態頁面和靜態圖片 echo '<html><body><h1>this is static</h1></body></html>' > /usr/local/nginx/html/index.html mkdir /usr/local/nginx/html/long cd /usr/local/nginx/html/long
vim /usr/local/nginx/conf/nginx.conf
......
http {
......
#gzip on;
upstream tomcat_server {
server 192.168.109.22:8080 weight=1;
server 192.168.109.23:8080 weight=1;
}
server {
listen 80;
server_name www.long.com;
#charset koi8-r;
#access_log logs/host.access.log main;

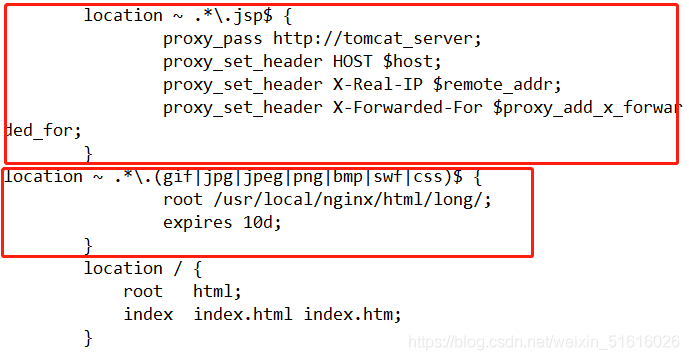

#配置Nginx處理動態頁面請求，將 .jsp 文件請求轉發到Tomcat 服務器處理
location ~ .*\.jsp$ {
proxy_pass http://tomcat_server;
proxy_set_header HOST $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
#配置Nginx處理靜態圖片請求
location ~ .*\.(gif|jpg|jpeg|png|bmp|swf|css)$ {
root /usr/local/nginx/html/img/;
expires 10d;
}
location / {
root html;
index index.html index.htm;
}
systemctl restart nginx.service
4、訪問測試

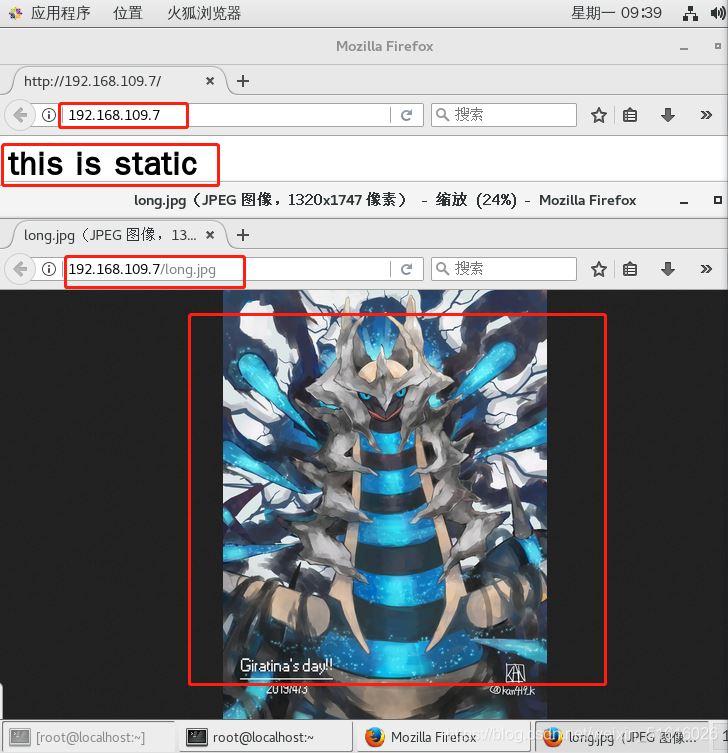

測試靜態頁面效果
瀏覽器訪問 http://192.168.109.7/
瀏覽器訪問 http://192.168.109.7/long.jpg

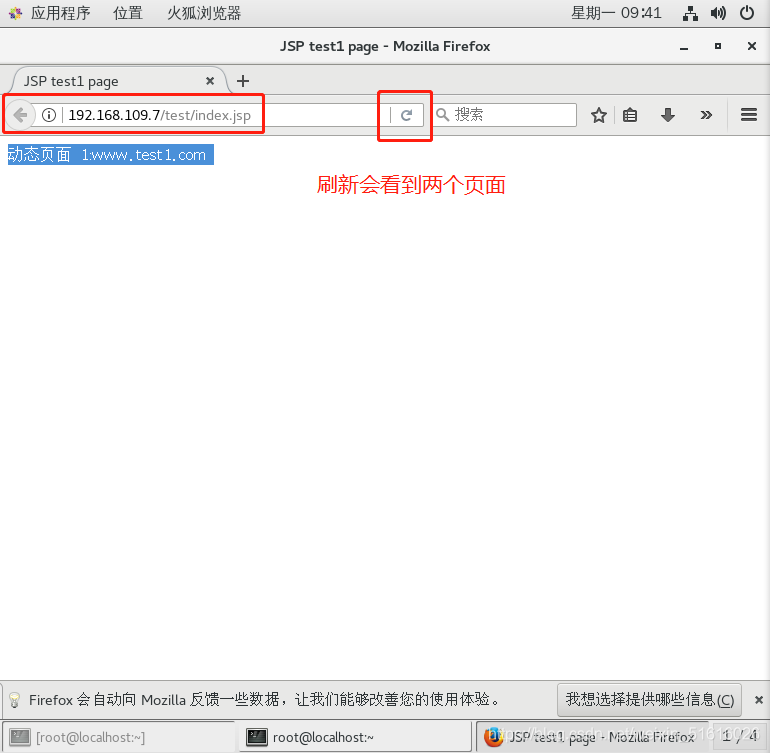

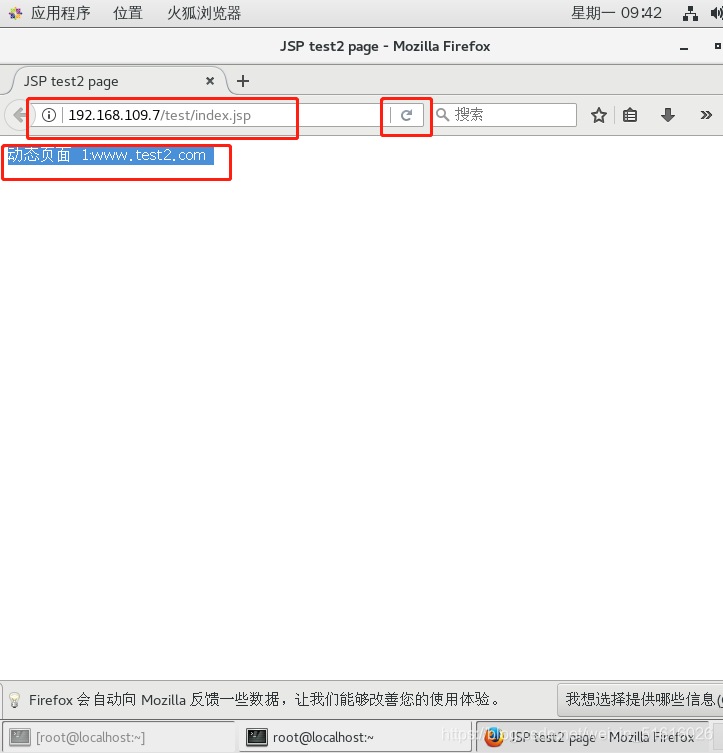

測試負載均衡效果，不斷刷新瀏覽器測試
瀏覽器訪問 http://192.168.109.7/test/index.jsp
